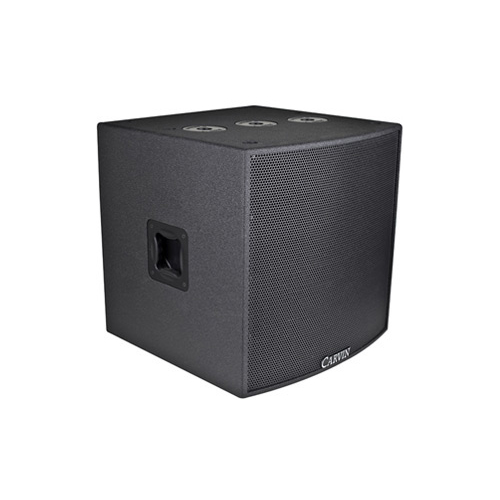

TRX2118 18 INCH 1600W SUBWOOFER

The TRx2118 is a compact high Q sub-subwoofer design to add extended ultra-low frequencies to any system. Effective for both permanent and portable applications, coupled with the TRx3210 Line array elements provides very powerful extended full range system. The TRx1121 features added foot holes for stacking up to four and dual pole mounts for suspending up to two TR3210s. And third centered pole mount for a TRX12 or TRX115.

The TRx2118 is our finest single 18-inch subwoofer system. The high power, cast frame 18-inch woofer features a 4-inch voice coil with outstanding deep bass performance compared to similar systems.

The TRX2118 features foot locating holes on top for stacking another TRx2118 and for stacking up to 4 TRx3210 line array elements without hardware. Three top pole mounts feature 16" spaced dual pole system for suspending two TRx3210 speakers, and a single centered pole mount for suspending a TRx115 or TRx12.

The enclosure is constructed of CNC machined 13-Ply Premium Russian Baltic Birch with heavy gauge steel powder coated front grills. The crossover includes 4 pin NL4 Speakon connectors mounted on FR4 double sided circuit boards for solid construction and durability.

Applications Include:

  • Cinema
  • Theme parks
  • House of worship and concert halls
  • Medium-to-large theaters and clubs
  • Outdoor concerts and street festivals

Made in the USA.

Specification

  • System Type: 18-inch Sub, bass-reflex
  • Frequency Response: 20 Hz - 1.5K Hz (-10DB); 30 Hz - 1k Hz (-3 dB)
  • Coverage Pattern: Omni
  • Crossover: none internal
  • Crossover Frequency: recommended 80-120 Hz
  • Power (Full Range): 800W Continuous / 1600W Program / 3200W Peak
  • Recommended Amplifier Power: 800W - 1600W
  • Sensitivity (1w @ 1m): 97dB
  • Maximum SPL: 127dB Cont/ 133dB Peak
  • LF Driver: 18-inch, 4-inch VC, woofer
  • Nominal Impedance Full Range: 8 ohms

Enclosure:

  • 13-Ply Russian Baltic Birch
  • Suspension/Mounting: Top: 3 x 1-3/8-inch Pole Mount Cups, Foot receivers for TRx3210
  • Finish: Black DuraTex™
  • Transport: 2 Recessed Handles
  • Grill: Black powder coated steel, Acoustically Transparent Foam Backing
  • Connectors: Two NL-4 Neutrik Speakon
  • Dimensions: 23.5" high x 23.5" wide x 23.5" deep (600mm x 600mm x 600mm)
  • Net Weight: 75 lb (37 kg)

Made in San Diego, California
