Carvin's TRx 2000 Series loudspeakers are a high performance solution for bands, audio companies and concert venues. They feature the latest innovations for optimal performance of both live and music playback. The TRx loudspeakers include point source, monitor and subwoofer solutions – all with the goal of providing the best sound at high SPL levels. The TRx Series are made from road worthy multi-ply Baltic Birch and covered in weather and UV resistant Duratec™ coating. Steel powder coated grills, handles, pole mounts and fly points provide the means for set-up and installation. These high performance systems are designed for today's pro audio applications and are protected by a 5 year warranty.

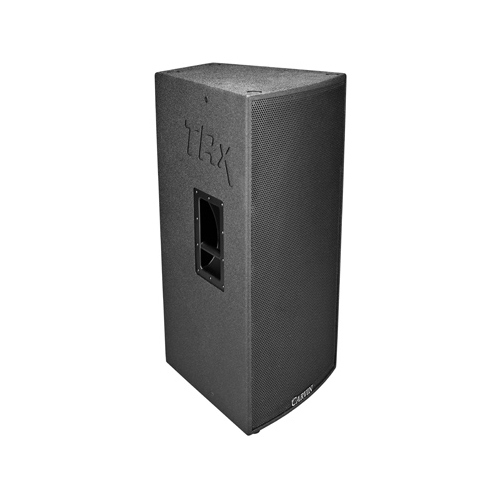

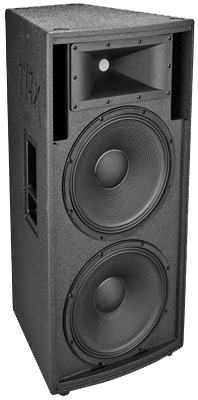

The TRx2215 is a high performance and heavy-duty dual 15-inch woofer point source loudspeaker featuring a 1.4-inch exit high frequency driver. The 4-pin twist-lock connectors allow for easy bi-amping for ultimate performance. The TRx2215 has the capacity of 4800w peak in full range or bi-amped mode. The trapezoid shaped bass reflex enclosure allows for multiples to be tightly positioned for clean-coupled dispersion. 12 fly points provide the ability for permanent suspension. The dual 15-inch design provides accurate high 136 DB SPL output for today’s demanding music.








  • System Type: Dual 15-inch, bass-reflex
  • Frequency Response: 50 Hz – 20 kHz (-10DB)
  • Coverage Pattern: 80H x 50V
  • Crossover: 2-Way w/ Speaker Guard™ HF protection
  • Crossover Frequency: 1.5 k Hz
  • Power Full Range 4 Ohms: 1200w Continous /2400w Program /4800w Peak
  • Sensitivity (1w @ 1m): 100dB
  • Maximum SPL: 131dB Cont/ 137dB Peak
  • LF Driver: Dual 15-inch cast frame 3-inch VC
  • HF Driver: 1.4-inch exit, 2.5-inch Voice Coil
  • Nominal Impedance full range: 4 ohms
  • Bi-amp LF: 4 ohms 1200w /2400w /4800w
  • Bi-amp HF: 8 ohms 80w /160w /320w


  • 13-Ply Premium Russian Baltic Birch
  • Suspension/Mounting: 12 captive 3/8-16 in nut fly points
  • Dimensions (H x W x D): 41" high x 19" wide x 20.5" deep
  • Weight: 92.4 lbs

Rigging Accessories:

  • TCSHK10 3/8-16 Eyebolt
  • TCSHK58 5/8 Shackle

Made in San Diego, California
