Carvin's TRx 2000 Series loudspeakers are a high performance solution for bands, audio companies and concert venues. They feature the latest innovations for optimal performance of both live and music playback. The TRx loudspeakers include point source, monitor and subwoofer solutions – all with the goal of providing the best sound at high SPL levels. The TRx Series are made from road worthy multi-ply Baltic Birch and covered in weather and UV resistant Duratec™ coating. Steel powder coated grills, handles, pole mounts and fly points provide the means for set-up and installation. These high performance systems are designed for today's pro audio applications and are protected by a 5 year warranty.

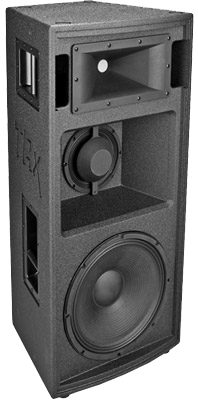

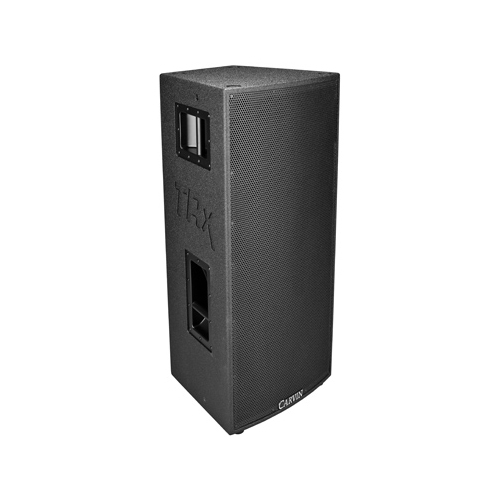

The TRx2153 is a high performance 3-way model featuring a 15-inch heavy-duty woofer, a horn loaded 8-inch mid range driver and an 80 x 50 degree horn loaded 1.4-inch exit high frequency driver. The enclosure is capable of 2400w peak in full-range mode. The 4-pin twist-lock connector allows for easy bi-amping for the best efficiency where the Hi and Mid drivers can be powered separate from the low frequency woofer delivering exceptional sound especially for drums and vocals. The trap shape aids in coupling multiple enclosures for optimal dispersion and 12 fly points are included for suspension. The TRX2153 3-way system in passive or bi-amped, will provide the best sonic details in the highs, mids, and low frequencies.







  • System Type: 15-inch 3-Way, bass-reflex
  • Frequency Response: 50 Hz – 20 kHz (-10DB)
  • Coverage Pattern: 80H x 50V
  • Crossover: 3-Way with Speaker Guard™ HF protection
  • Crossover Frequency: 500, 1.5 k Hz
  • Power Full Range 8 Ohms: 600w Continous /1200w Program /2400w Peak
  • Sensitivity (1w @ 1m): 100dB
  • Maximum SPL: 128dB Cont/ 134dB Peak
  • LF Driver: 15-inch cast frame 3-inch VC
  • MF Driver: 8-inch 1.75-inch VC
  • HF Driver: 1.4-inch exit, 2.5-inch Voice Coil
  • Nominal Impedance full range: 8 ohms
  • Bi-amp LF: 8 ohms 600w /1200w /2400w
  • Bi-amp MF/HF: 8 ohms 200w /400w /800w
  • Enclosure: 13-Ply Premium Russian Baltic Birch
  • Suspension/Mounting: 12 captive 3/8-16 in nut fly points
  • Dimensions: 41" high x 19" wide x 17" deep
  • Weight: 83 lbs

    Rigging Accessories:
  • TCSHK10 3/8-16 Eyebolt
  • TCSHK58 5/8 Shackle
Made in San Diego, California
