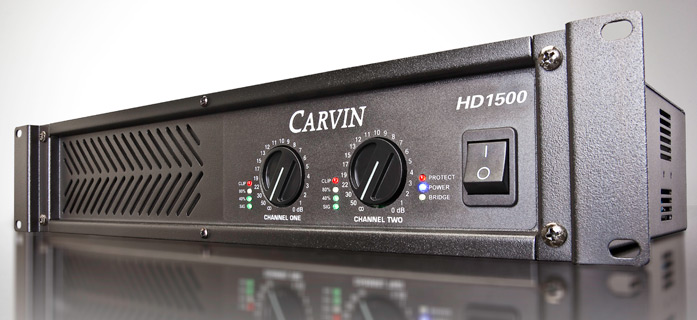

Carvin's value-featured HD1500 amp delivers an impressive 1500W bridged at 4 ohms providing plenty of power for subwoofers. Its clarity surprises everyone with its fast 50uv output stages delivering superb natural sound. It's designed to run at 2 ohms delivering 750 per channel, 450w at 4 ohms (1500w bridged) and 300w at 8 ohms (bridged 900w). Features include 94% efficient CLASS D amps, 100 Hz subwoofer crossover, built in limiters protecting drivers and balanced 1/4" and XLR inputs and Speakon™ and binding post outputs. The 2RU rack aluminum chassis holds the weight down to 9 pounds. Each amp is Audio Precision™ tested, which includes a burn-in under full load to assure reliability & specs.

Unlike comparable amps in this price range, the HD1500 is fused at 15 amps allowing you to get the full rated output at 2 ohms/channel or 4 ohms bridged. The best news is that it's made in the USA where nothing else in its category is manufactured.

FEATURES

• 100 Hz crossovers for subwoofers
• Built-in limiters help protect drivers
• LED indicators: power, clip, 3 levels, protect, bridge
• Balanced XLR and 1/4" inputs
• 1/4" /Speakon™ combo output connectors
• Heavy-duty output binding posts for bridging
• Rear switches: bridging, channel paralleling, 100HZ crossovers
• Recessed knobs offer better protection against damage
• Each amp is Audio Precision™ tested, which includes a burn-in under full load

SPECIFICATIONS

OUTPUT POWER

1 CHANNEL RMS continuous

• 8 ohms: 350 watts
• 4 ohms: 500 watts
• 2 ohms: 800 watts

BOTH CH RMS continuous

• 8 ohms: 300/300 watts
• 4 ohms: 450/450 watts
• 2 ohms: 750/750 watts

BRIDGED RMS continuous

• 8 ohms bridged: 900 watts
• 4 ohms bridged: 1500 watts

• Frequency Response: +0/-3 dB 20 Hz20 kHz
• THD< 0.1% @ 50% output, <.2% 20-20 kHz @ 90% output
• Output Topology: 94% efficient CLASS D "Green" design
• Power Supply: Switchmode40% reservesee kick drum test
• Damping Factor: >500
• Slew Rate: bridged mode >50v/µs
• Sensitivity (@ 4Ω): 1.0 Vrms
• Signal to Noise Ratio: Greater than 106 dB
• Input Impedance: >20K ohm balanced
• Speaker Guard™ DC production for drivers
• Soft-start power-ups: prevents AC breakers from tripping
• Over-Current: protected
• Under-Voltage: protected
• Thermal: protected
• Fan: variable speed
• Shock-proof SMT construction
• FR4 fire retardant circuit boards
• Aluminum chassis
• Air Flow"rear to front" for cooler rack
• AC generator friendly
• AC auto switching: 90-250VAC 50-60Hz
• Fuse: 15 amps
• 2RU rackmount
• Dim: 19" (48cm) wide x 10.5" (26.6cm) deep x 3.5" (9cm) high
• Weight: 9 lbs (4kg)
