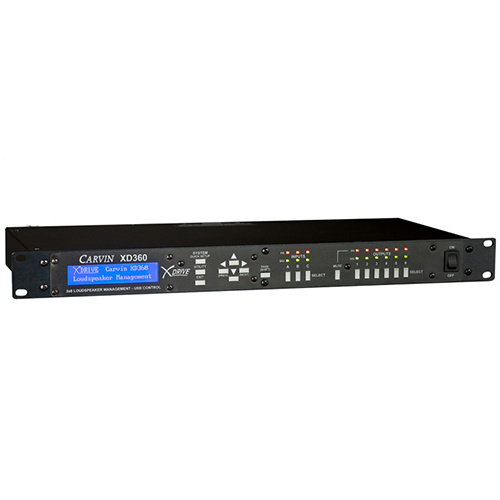

The new XD360 X-Drive™ Digital Audio Loudspeaker and System Processor is a single-space rack processor and is the next generation of professional-quality pro audio tools for studio and live sound reinforcement. It utilizes a Texas Instruments Digital Signal Processor along with super low noise 24-bit converters and intuitive controls for the ultimate in sound reproduction.

The XD360 offers incredible flexibility with sonic excellence that elevates the performance of any system by utilizing every power amp watt, adjusting tone for the best sound, adding delays to match drivers or distance, and eliminating audio peaks, all in a single system or multi-zone application. It is simple to operate and stores 16 complete systems with all your sound system's crossover, EQ and limiter settings. The 3 inputs are assignable to any combination of the 6 outputs. With this, you can set up a stereo 3-way crossover, a triple 2-way crossover, a stereo 2-way crossover with stereo or mono summed subs, and even a single 6-way crossover system. The XD360 comes with presets for Carvin's TRx loudspeaker parameters, and can be used with any speaker system, including powered models. Just connect and enjoy hassle-free settings. The XD360's 3 inputs each feature 6 parametric EQs and delay. Each output features high and low pass Butterworth, Bessel or Linkwitz-Riley crossover filters from 6 to 48 dB/octave, 4 parametric EQs, limiter, phase and delay. The transparent output limiters offer loudspeaker protection while the adjustable 120 milisecond delay provides precision cabinet time alignment and speaker placement delay. The USB 1.1 or higher Windows PC interface provides simple real time control or pre-show setup to store more systems on your computer or adjust the unit on the fly. Designed for a single FOH (front of house) system or multi-zone application. Impeccable filter designs offers an unprecedented combination of processing power, while the single rack space design puts a lot of power in a small space, and simplifies your overall setup. For the most control and best sounding system move up to the Carvin XD360! Made in the USA.


  • Crossover, Delay and EQ for multi-way loudspeaker systems
  • EQ for monitors and self-powered loudspeakers
  • Limiter for power amps and master recording
  • Matrix Routingany input to any output; balanced mixer/line transmission and audio signal distribution


  • "Quick Setup" button for easy system setups
  • Back-lit 32x192 pixel graphic display (.75" x 3.5")
  • Carvin TRX loudspeakers crossover points included; change or add your own
  • Compatible with all major brands of loudspeakers and amplifiers
  • On-line downloading available for software updates and Carvin system parameters
  • Permanent storage of all set-ups in your PC should your unit be stolen or after an unlikely failure
  • Up to three 2-way crossovers (monitors), stereo 3-way, or 4, 5 or 6-way crossover
  • Extra memory stores up to 16 3x6 systemspick & choose your systems
  • Ground lift switch to help eliminate unwanted noise
  • Password protection for unwanted changes
  • Anti-reflective black finish
  • Made in the USA


  • XLR inputs assignable to any XLR outputmixer/router
  • Mute any output
  • Input & Output Gain controls
  • 6 Parametric EQs per input
  • 4 Parametric EQs per output
  • 6 adjustable output Limiters
  • Phase (polarity) control
  • Up to 120ms delay (120') for driver alignment
  • LO & HI Pass crossover filters limit frequency bandwidth to reduce stage rumble or feedback
  • Filter types: Bessel, Butterworth, Linkwitz-Riley 6 to 48dB/octave


  • USB 1.1 or higher for programing or real time information
  • Compatible with Microsoft® Windows XP and newer
  • 3 XLR inputs assignable to any 6 outputs
  • 6 XLR outputs: triple 2-way to single 6-way systems
  • Stores sixteen 3x6 systems

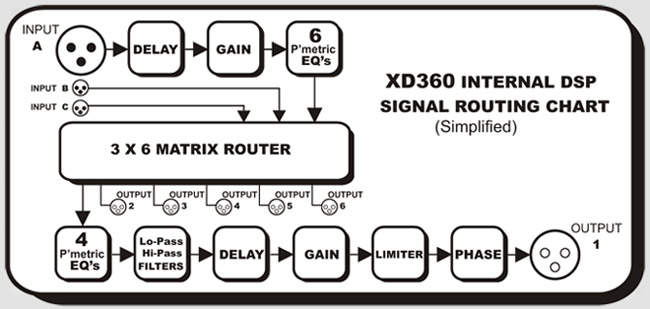

  • Matrix mixing: any input to any number of outputs
  • Limiter on each of the 6 outputs
  • Mute any of the 6 outputs
  • Delay: up to 120ms (120 ft) total
  • 4 full range parametric EQs on each of the 6 outputs
  • Adjustable HI and LO PASS Crossover points on each of the 6 outputsHI and LO pass filter types: Bessel, Butterworth, Linkwitz-Riley, 6-48dB/octave
  • 24 Bit Low noise converters
  • +18 dBμ (9.4 Vrms) input/output
  • 20 to 20kHz +/- 1db
  • THD less than .05% at +10 dBμ
  • Signal to Noise Ratio: Greater than 115 dBμ
  • 1RU rack mount 19" wide x 1.75" high x 8" deep
  • Weight: 4.25 lbs
  • Universal 90-250VAC 50-60 Hz AC input

Made in USA
