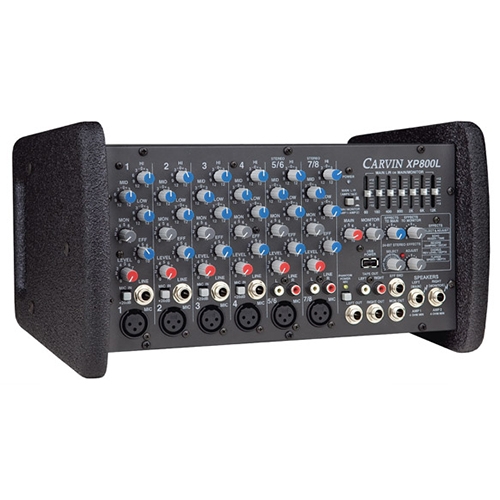

XP800L LIGHTWEIGHT STEREO 500W 6 CHANNEL MIXER

The ultra light XP800L Stereo 6 Channel powered mixer features 8 inputs and an impressive 500 watts RMS (750 watts peak) power from 2 amplifiers all in a compact 10 lbs enclosure. Each XP800L features a USB power port for an iPod™ (MP3 player) or LED panel light. Each amp delivers 250w RMS (375w peak) at 4 ohms or 140w (210w peak) at 8 ohms. Left and Right power amps can be switched to Main/Monitor driving both main speakers and floor monitors. With this much power, the XP800L can cover audiences up to 300 people. The high efficiency "Green" Class D power amplifiers conserve power so they are more environmentally friendly and cheaper to operate. Two 1/4-inch speaker connectors are featured on the front panel for fast set up.

SUPERB SOUND is derived from the extremely low distortion, "high headroom" design. State-of-the art, low noise, balanced XLR preamps from our Concert Series mixers provide common mode rejection better than 78 dB, which means that any noise that may come over your cables is virtually eliminated. Distortion is nearly non-existent with THD below 0.1% from input to output, guaranteeing the purity of your sound. Hear the difference.

LIGHTWEIGHT/EASY TO USE Controls are logically laid out making the XP Series simple to use reducing errors during setup and performance. Its compact size and weight of only 10 lbs. makes it the lightest, most powerful mixer in its class.

2 HIGH CURRENT "GREEN" CLASS-D AMPLIFIERS each produce 250w RMS, 325w peak at 4 ohms or 140w RMS, 210w peak at 8 ohms. Class D amps not only run cooler, but their power efficiency is outstanding. This means they demand less power from the wall to sustain the power needed to drive your speakers. Speaker outputs accept standard 1/4"connectors for secure connections.

HIGH CURRENT "GREEN" SWITCHMODE POWER SUPPLY conserves power by operating at higher efficiency. The DC voltage supply is recharged 100,000 times per second, delivering continuous high current to the power amps.

24-BIT STEREO DSP EFFECTS allow you to assign your channels to your choice of effects. The effects are adjustable to your stage monitors so you can hear yourself with full effects. The effects processor with 256 effects includes reverbs, choruses, flanging and echoes with fully adjustable parameters for damping, decay, depth, speed, regeneration and time.

ACTIVE 3 BAND CHANNEL EQ provides easy adjustment for the tone you want. The 80Hz LO frequency control delivers a solid non-flabby bass. A simple adjustment with the MID band control brings out the best sound for vocals or guitar by affecting the very important 750Hz frequency range. The 11.5k Hz HI treble control adds sparkle to your top-end without adding harshness. Both the LO and HI controls are "shelving", which means they are effective from 20Hz to 20kHz.

STEREO 7-BAND EQUALIZER provide precise adjustments to fine tune your overall sound and to help control feedback. The EQ tracks with the main power amps either to the LR main outputs or monitor/main outputs (mono).

ENGINEERED TO LAST Every XP Series mixer incorporates a rugged steel chassis with protective side panels. Continuous full power is assured from high-grade 6063-T5-aluminum heat sinks. Sealed controls and switches guard against the outside elements while heavy-duty connectors provide a positive connection to your cables. Hidden deep in the heart of these mixers is the "SMT" Surface Mount Technology that utilizes surface mounted components to prevent parts from shaking or vibrating loose. Precision 1% tolerances guarantee your settings will be accurate every time. Fire retardant FR-4 military spec circuit cards feature double-sided copper to guard against noise and radio frequencies (RF). The XP Series is made in the USA for years of dependable service.

Specification

  • Frequency Response: Mic or Line Inputs: 20Hz-20kHz ±1dB
  • Total Harmonic Distortion: Less than .1% at nominal levels
  • Equivalent Input Noise: 150 ohm source: -117dBu
  • Output Noise: -90dBu Master Line Out (All Levels Minimum)
  • Output Headroom: +20dB
  • Maximum Gain: Mic in to Master Line Out: 70dB
  • Crosstalk: Adjacent channels: -60db at 1KHz
  • Common Mode Rejection: -78db at 1KHz
  • Phantom Power: 48volt @ XLR Mic channels
  • Channel EQ 3-band active: LOW: 80Hz ±12dB, MID: 750Hz ±12dB, HI: 11.5KHz ±12dB
  • Power Output: 2x250w RMS@4ohms, 140w RMS@8ohms
  • Power Req.: 120VAC 60 Hz or 240VAC 50 Hz auto switching
  • Dimensions: 13.5" wide x 9" deep x 7.5" high
  • Weight: 10 Lbs
