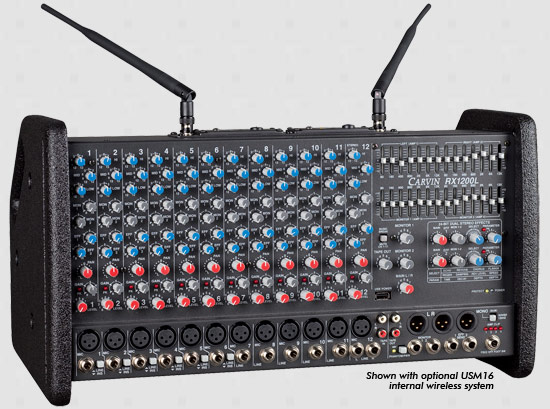

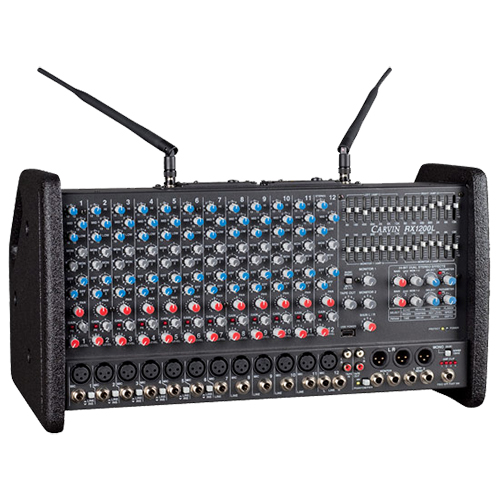

RX1200L LIGHTWEIGHT STEREO 1600W 12 CHANNEL MIXER

Carvin is excited to add the ultra-light RX1200L 12 channel 1600w powered mixer to its line. The 4 power amps deliver 400w at 4 ohms or 300w at 8 ohms each to give the R/L main speakers plenty of clean RMS power while delivering 400 watts to each of the Monitor 1 and 2 outputs through Speakon™ and 1/4-inch connectors. Features like the dual channel effects and dual 24 bit processors allow each channel to have two effects. Up to 2 optional mic or belt-pack dual diversity wireless systems can be plugged into the top eliminating cable clutter. A USB Power Port supports charging an iPod™ or panel light. The CLASS D output runs cool from its 94% efficiency - no wasted heat or energy from the AC plug and the auto-switching AC input is for 120V 60 Hz or 240V 50 Hz.

Made in the USA.

Features:

- Superb sound from 12 XLR low noise mic pre amps, plus one stereo channel wth 1/4" R/L & RCA inputs
- 4 power amps – R/L & Monitors 1&2 delivering 1600w RMS, 2400w peak power for large venues. Each amp delivers 400w RMS at 4 ohm, 300w RMS at 8 ohm.
- Rack mountable - remove end-caps to install into a 5U or larger rack case
- Speakon™ combo 1/4-inch connectors.
- 5V USB power port for iPods™, MP3 players or USB LED lights
- Professional Insert jacks at the push of a button on the first six channels
- Variable GAIN controls adjust the input levels to eliminate noise & over driving
- Active LOW, MID and HI channel EQ
- Four 7 band Graphic EQ’s - R/L, plus Monitor 1 and 2
- 2 DSP effect processors allow 2 effects at one time with over 256 effects each with controls sending the effects back to the floor monitors
- +48V Phantom condenser mic power
- Music Break switch allows back-round music while the channels are muted.
- Class D power amps deliver high dynamic power from the Switchmode power supply that operates at 100,000 Hz for maximum effi ciency delivering great sub bass performance while eliminates the weight
- No wasted energy from the AC wall plug, plus it runs cool because it operates at 94% efficiency
- The convenient auto-switching AC input for either 120V 60 Hz or 240V 50 Hz
- Size: 19"W x 10.5"D x 10.3"H, 18 lbs.
- Top slot for two optional USM16-MC or USM16-BP mic or belt-pack wireless systems – eliminates the clutter

Specification

  • Superb sound from 12 XLR low noise mic pre amps, plus one stereo channel with 1/4" R/L & RCA inputs
  • 4 power amps – R/L & Monitors 1&2 delivering 1600w RMS, 2400w peak power for large venues. Each amp delivers 400w RMS at 4 ohm, 300w RMS at 8 ohm.
  • Rack mountable - remove end-caps to install into a 5U or larger rack case
  • Speakon™ combo 1/4-inch connectors.
  • 5V USB power port for iPods™, MP3 players or USB LED lights
  • Professional Insert jacks at the push of a button on the first six channels
  • Variable GAIN controls adjust the input levels to eliminate noise & over driving
  • Active LOW, MID and HI channel EQ
  • Four 7 band Graphic EQ’s - R/L, plus Monitor 1 and 2
  • 2 DSP effect processors allow 2 effects at one time with over 256 effects each with controls sending the effects back to the floor monitors
  • +48V Phantom condenser mic power
  • Music Break switch allows back-ground music while the channels are muted.
  • Class D power amps deliver high dynamic power from the Switchmode power supply that operates at 100,000 Hz for maximum efficiency delivering great sub bass performance while eliminating the weight
  • No wasted energy from the AC wall plug, plus it runs cool because it operates at 94% efficiency
  • The convenient auto-switching AC input for either 120V 60 Hz or 240V 50 Hz
  • Size: 19"W x 10.5"D x 10.3"H, 18 lbs.
  • Top slot for two optional USM16-MC or USM16-BP mic or belt-pack wireless systems – eliminates the clutter
