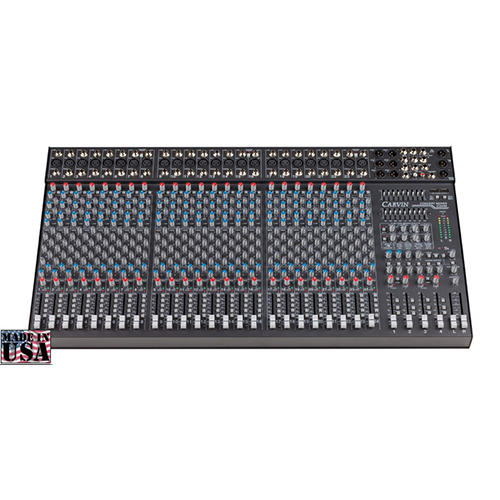

C2448 24 CHANNEL 4-BUS MIXER W/ 8 CH SENDS, 4 BAND CH EQ
The unveiling of the new C2448 Concert Series 24-Channel Console demonstrates Carvin's commitment to professional live sound. The C2448 includes more channel sends and additional EQ capabilities than our previous Concert Series boards, with a total of 8 channel sends: 6 monitors and 2 effects. The 4-band channel EQ features dual sweep parametrics with LO MIDS and HI MIDS giving you greater control of your sound. The four main buses (groups) feature their own compressor/limiter with a Link switch for tracking two compressors together, which a big plus for controlling drums, choir, etc. The Concert Series is designed for installations such as churches and performance venues, or for touring sound systems. Careful attention has been given to the features, sound reproduction and mechanical construction, making Carvin's new Concert Series mixers the ideal choice for most live sound applications. Professional features, unsurpassed sound, rugged construction and a price that can't be beat make the C2448 the ideal choice for your live setup, and best of all, it's made in the USA.
Simplicity In Operation
Ease of operation is incredibly important. The C Series consoles are designed with the operator in mind. Everything is logically arranged. Simply plug-in the channels, adjust the monitor levels and bring up the main L/R faders and you're up and running. If you need EQ (tone changes), simply dial in the sound you want. The C Series is designed on a small-scale platform making it easy to transport. No other console offers more channels per linear inch.
USB Recording
USB connectivity allows for ease of recording using a single cable to record your L/R stereo mix direct to your computer. The digital interface gives you the highest quality audio output for recording. You can send audio from your computer into the console via USB. Set-up playlists on your computer for hours of automated playback through your sound system.
Onboard Wireless Capability
The exclusive optional True Diversity USM16 built-in wireless systems allow the C2448 to have up to 4 wireless units, whether it be mic or belt-pack systems. The advantage of adding these options now or later is that the operator eliminates cable clutter and simplifies setup. The wireless units are automatically routed to channels 1 & 2, and 9 & 10 on the console plus the internal power supply and the rear antennas. Each system is connected with a simple plug-in connector.
Quality Control
Our Quality Control Department personally inspects every mixing console. After the physical inspection, the most critical and most important part of QC testing is running every channel, master section and connector through Audio Precision™ computers to verify every function. This means everything meets 100% of its specifications. This is great assurance that every EQ section, every output delivers the highest voltages with the lowest possible THD. The below chart shows that the THD is actually .002% which is about 5 times lower than our stated THD of .01%.
Construction
The engineering and design is what you'd expect from Carvin's high-end manufacturing. Ultra low-noise, high slew rate IC's for exceptional sound. Sealed controls and switches guard against the elements while the "SMT" Surface Mount Technology construction ensures the integrity of each component. The rugged chassis incorporates the integral SwitchMode™ 90V-260V 50-60 Hz power supply. The C2448 is made in the USA at our San Diego, CA facility.
Recommended Applications
Touring - Theatres - Houses of Worship - Music Venues - Musicians & Bands - Recording & Mixing
Key Features
MASTER - 4 Sub Groups + L/R - Center/Sub output - 4 Buses Compressors - "Link" switches for compressors - 2 processors – 256 effects each - Effects to monitors - 2 9 band L/R-Moinitor EQ's - 2 USB power ports - USB L/R recording output - USB L/R PC input - Rear slots for wireless options (up to 4 mics or beltpacks) - Ultra low THD – less than .01% - SwitchMode™ 90-260 VAC input |
CHANNEL - 4 Buses + L/R - 4 Band EQ w dual Mid sweeps - High pass filter - 6 Ch Monitor Sends - 2 Ch Effects Sends - Ch mute/Peak indicator - Adjustable Gain attenuator |
Specification
- 6 monitor sends
- Lo, mid & high parametric EQ
- Two 5V USB power ports
- 4 bus compressor with link switches
- Freq. response: 20-20k Hz ±1 dB
- THD distortion: .01% 20-20k Hz
- E I N: -117 dBm
- S/N Ratio 90 dB
- Dynamic Range: 104 dB
- Mic Gain: 52 dB
- Line Gain: 30 dB
- Total Gain: 72 dB (balanced)
- Max Output: +28 dBm
- Power Req. 90 to 250VAC 50-60Hz, 50VA
- Dimensions: 30" wide X 16.25" deep X 3.75" high
- Weight: 23 lbs
- Made in San Diego, California
