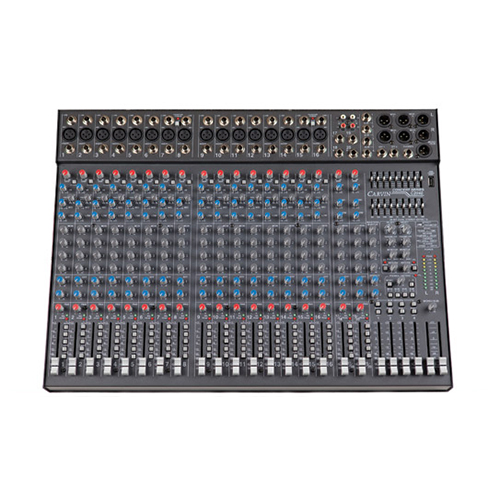

C2040 20 CHANNEL 4-BUS MIXER W/ 6 CH SENDS, 3 BAND CH EQ
The unveiling of the new C2040 Concert Series 20-Channel Console demonstrates Carvin's commitment to professional live sound. The C2040 includes a total of 6 channel sends: 4 monitors and 2 effects, and the 3-band channel EQ features LO, MID and HI controls, giving you greater control of your sound. The Concert Series is designed for installations such as churches and performance venues, or for touring sound systems. Careful attention has been given to the features, sound reproduction and mechanical construction, making Carvin's new Concert Series mixers the ideal choice for most live sound applications.
Professional features, unsurpassed sound, rugged construction and a price that can't be beat make the C2040 the ideal choice for your live setup, and best of all, it's made in the USA.
Simplicity In Operation
Ease of operation is incredibly important. The C Series consoles are designed with the operator in mind. Everything is logically arranged. Simply plug-in the channels, adjust the monitor levels and bring up the main L/R faders and you're up and running. If you need EQ (tone changes), simply dial in the sound you want. The C Series is designed on a small-scale platform making it easy to transport. No other console offers more channels per linear inch.
Onboard Wireless Capability
The exclusive optional True Diversity USM16 built-in wireless systems allow the C2040 to have up to 2 wireless units, whether it be mic or belt- pack systems. The advantage of adding these options now or later is that the operator eliminates cable clutter and simplifies setup. The wireless units are automatically routed to channels 1 & 2 on the console plus the internal power supply and the rear antennas. Each system is connected with a simple plug-in connector.
Quality Control
Our Quality Control Department personally inspects every mixing console. After the physical inspection, the most critical and most important part of QC testing is running every channel, master section and connector through Audio Precision™ computers to verify every function. This means everything meets 100% of its specifications. This is great assurance that every EQ section, every output delivers the highest voltages with the lowest possible THD. The below chart shows that the THD is actually .002% which is about 5 times lower than our stated THD of .01%.
Construction
The engineering and design is what you'd expect from Carvin's high-end manufacturing. Ultra low-noise, high slew rate IC's for exceptional sound. Sealed controls and switches guard against the elements while the "SMT" Surface Mount Technology construction ensures the integrity of each component. The rugged chassis incorporates the integral SwitchMode™ 90V-260V 50-60 Hz power supply. The C2040 is made in the USA at our San Diego, CA facility.
Recommended Applications
Touring - Theatres - Houses of Worship - Music Venues - Musicians & Bands - Recording & Mixing
Key Features
MASTER - 4 SUB GROUPS - L/R Assign switches - L/R MAIN faders (XLR) - MONO output (XLR) - 4 MONITOR levels (XLR) - 2 EFFECT levels (1/4") - 1 USB Power ports - 2 NINE BAND GRAPHIC EQs - 10 segment VU meters - VU & PHONES switches to monitor: PFL, L/R, 4 Buses, Mono - Stereo HEADPHONE level (1/4") |
CHANNEL - 4 SUB GROUPS + L/R - 6 SENDS-4 MON, 2 EFF - 3 Band EQ- MID sweep - Bal. Mic inputs (XLR) - Stereo CH (1/4"/RCA) - Bal. LINE inputs (1/4") - INSERT/DIRECT outs (1/4") - +48v PHANTOM power - R/L STEREO/CENTER PAN - SIGNAL LED - PEAK LED - MUTE SWITCH - PFL SWITCH - 60mm FADER |
EFFECTS - 2 built-in 24-BIT Effects: reverbs, chorus, echos, flanging - 256 Effects each - 2 master Effect levels - 4 Effect PARAMETERS - 2 Effect PEAK indicators - 2 Effect MUTE switches - Effect level to MONITO |
Specification
- 4 monitor sends, 2 effects sends
- 3 band channel EQ with dual mid-sweep parametrics
- 5V USB power port
- 4 bus compressor with link switches
- Freq. response: 20-20k Hz ±1 dB
- THD distortion: .01% 20-20k Hz
- E I N: -117 dBm
- S/N Ratio 90 dB
- Dynamic Range: 104 dB
- Mic Gain: 52 dB
- Line Gain: 30 dB
- Total Gain: 72 dB (balanced)
- Max Output: +28 dBm
- Power Req. 90 to 250VAC 50-60Hz, 50VA
- Dimensions: 22.2" wide X 16.3" deep X 3.75" high (56.4cm wide X 41.5cm deep X 9.5cm high)
- Weight: 18 lbs (8.16kg)
- Made in San Diego, California
