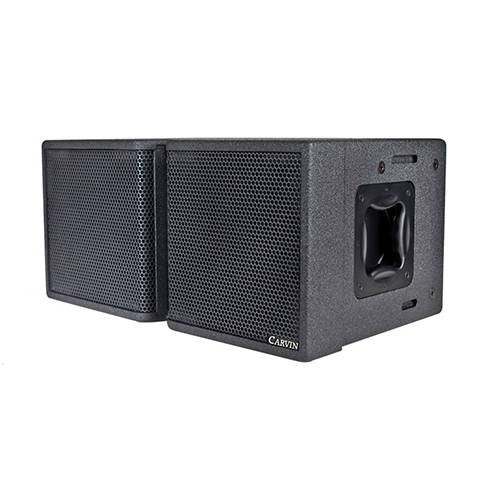

TRX3210NF 3-WAY 1000W LINE ARRAY ELEMENT (NO FLYWARE)

The 10-inch, 3-way TRx3210 line array element is a full range system featuring two high-power transducers for the lo-end & mid-range, which provide very high coherence and definition. The high frequency section features two professional 1-inch exit Mylar diaphragm compression drivers mounted to a PurePath™ lens system. The PurePath™ horn lens is CNC machined from acoustically non-resonant Eastern Maple hardwood, providing a smooth, equal path length surface for pure, natural highs. The lens also places the horn drivers in correct time with the 10-inch drivers for the best phase alignment and transient response over the full frequency spectrum.

3-Way Design


The 3-way design, with the operating frequency range divided into the low frequency band (80 Hz - 600 Hz), lo/mid band (80 Hz - 1500 Hz) and the very-high frequency band (1.5 kHz – 18.5 kHz) , offers high 131 dB SPL levels yielding perfect intelligibility. Continuous power: 500w, program: 1000w, peak: 2,000w. Impedance: 8 ohms.

The TRx3210 is remarkably compact to make more room on the stage, plus they fit into containers for easy transport. For fast setups, the enclosures are stackable on the integrated foot receptors featured on the TRx118 18" or TRx1121 21" subwoofers using no hardware. The inherent 6 dB advantage from a line array design allows the rear audience to hear nearly the same levels as the front, which eliminates having to overpower the front.

Fly up to 16 Units

Fly up to 16 enclosures with the optional SureFlyTRx™ quick release pin rigging system, which is easily attached to each enclosure, and add the top support SureFlyTbar™ for a total height of only 16 feet by 24" wide. The TRx3210 serves as the key component in scalable, building-block systems comprising of multiple enclosures.

TRx3210 Features

  • High SPL
  • Extremely low distortion
  • Eastern Maple hardwood PurePath™ horn lens
  • Passive crossover with bi-amp or full range switch
  • DuraTex™ weather & UV resistant tour-tough finish
  • 15mm Russian Baltic Birch 13-ply hardwood cabinet
  • Flyable up to 16 enclosures with optional SureFly™ rigging
  • Stackable up to 6 enclosures - no hardware required
  • Dimensions: 23.6" wide x 11.8" high x 14.8" deep
  • Weight: 50 lbs
  • Made in the USA
  • DOES NOT INCLUDE FLYWARE

SPECIFICATION

  • System Type: Dual 10 Inch 3-Way, Reflex
  • Frequency Response: 17 Hz - 18.5 kHz (-10DB)
  • 85 Hz - 16 kHz (-3 dB)
  • Coverage Pattern: 100H x 10V (number of cabinets changes vertical pattern)
  • Crossover: 3-Way Quasi with Speaker Guard™ HF protection
  • Crossover Frequency: 1.5 kHz (600 Hz LP one 10 Inch)
  • Power: Full Range 400w continuous /800w program /1600w peak
  • Recommended Amplifier Power: 500 - 1000w
  • Sensitivity (1w @ 1m): 98dB
  • Maximum SPL: 125 dB Continuous / 131 dB Peak
  • LF Driver: two 10 Inch, 2 Inch Voice Coil
  • HF Driver: 1-inch exit, 1.75 inch voice coil
  • Nominal Impedance Full Range: 8 ohms
  • Bi-amp LF: 8 ohms 400w /800w /1600w
  • Bi-amp HF: 8 ohms 90w /180w /360w
  • Enclosure: 13 ply Russian Baltic Birch
  • Suspension/Mounting: 7 captive 3/8in-16 nut fly points, Optional SureFly™ rigging, Two 1-3/8 pole mount cups
  • Finish: Black DuraTex™
  • Transport: 2 Recessed Handles
  • Grill: Black Powder-Coated Steel, Acoustically Transparent Foam Backing
  • Connectors: Two NL-4 Neutrik Speakons
  • Dimensions: 11.5" (295mm) high, 23.5" (600mm) wide, 14" (370mm) deep
  • Net Weight: 50 lbs (23 kg) without hardware
  • Rigging Accessories SureFly™ rigging kit
  • SureFly™ T-bar hanging kit
  • TCSHK10 3/8-16 Eyebolt
  • TCSHK15 3/8-16 Quicklink™

Made in San Diego, CA
