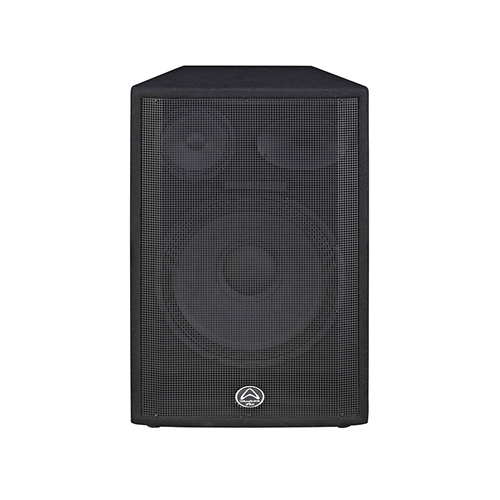

KINETIC 153

The Kinetic 153 is a passive 3-way loudspeaker that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 153 offers professional features such as a 1” compression driver, 15” custom designed woofer, 6.5” midrange driver and PTC HF protection. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.

The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.

SPECIFICATIONS

MODEL KINETIC 153
Power Handling
Continuous 300W
Peak 1200W
Programme 600W
Nominal Impedance 4Ω
Max SPL (Calculated) 129dB
LF Size 381mm / 15"
LF Voice Coil 2"
HF Voice Coil 25.4mm / 1"
HF Waveguide Type Elliptical
HF Waveguide Exit 30.5mm / 1.2"
HF Diaphragm Material Phenolic
HF Protection PTC
Enclosure Finish Black Carpet
Grille Material & Finish 1.2mm Steel
Pole Mount 35mm / 1 3/8"
Handles 2 On Sides
Input Connector Type 2x Speakon + 0.25" Jack
HPF Output Connector Type
Net Weight 21.5 Kg/ 47.3 lbs
Gross Weight 23.9 Kg/ 52.5 lbs
Dimensions (Unpacked)
H 725mm / 28.54"
W FRONT/REAR 473.8/293.7mm / 18.65"/11.56"
D 360mm / 14.17"
Dimensions (Packed)
H 786mm / 30.95"
W FRONT/REAR 538/324mm / 21.18"/12.76"
D 400mm / 15.75"
Configuration 3-way
Frequency Response (±3dB) 50-20kHz
Sensitivity (1W @ 1m) 98dB
Nominal Horizontal Coverage (@1kHz) 90°
Nominal Vertical Coverage (@1kHz) 60°
LF Driver Number L01-07010131A
HF Driver number ZD-53200-01R
Enclosure Material and Thickness 12mm / 0.5" particle
Volume 0.136m3
MF Size 165mm / 6.5"
MF Voice Coil 25.4mm / 1"
MF Driver Number ZD-24100-01R
