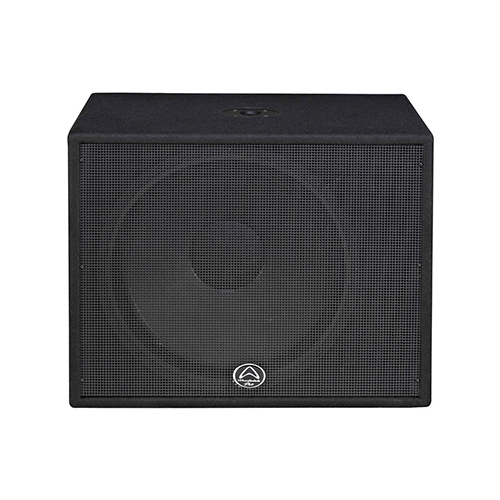

KINETIC 18B

The Kinetic 18B is a passive subwoofer that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 18B offers professional features such as an 18” custom designed woofer and a Speakon/Jack Combination high pass filter output. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.

The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.

SPECIFICATIONS

MODEL KINETIC 18B
Power Handling
Continuous 300W
Peak 1200W
Programme 600W
Nominal Impedance
Max SPL (Calculated) 129dB
LF Size 470mm / 18"
LF Voice Coil 2.5"
Enclosure Finish Black Carpet
Grille Material & Finish 1.2mm Steel
Pole Mount 35mm / 1 3/8"
Handles 2 On Sides
Input Connector Type 2x Speakon + 0.25" Jack
HPF Output Connector Type 1x Speakon + 0.25" Jack
Net Weight 28.74 Kg/ 63.2 lbs
Gross Weight 31.6 Kg/ 69.5 lbs
Dimensions (Unpacked)
H 512mm / 20.16"
W FRONT/REAR 640mm / 25.19"
D 437mm / 17.2"
Dimensions (Packed)
H 579mm / 22.79"
W FRONT/REAR 686mm / 27.0"
D 483mm / 19.0"
Configuration Subwoofer
Frequency Response (±3dB) 45-250Hz
Sensitivity (1W @ 1m) 98dB
LF Driver Number L01-07010028A
Enclosure Material and Thickness 12mm / 0.5" particle
Volume 0.192m3
