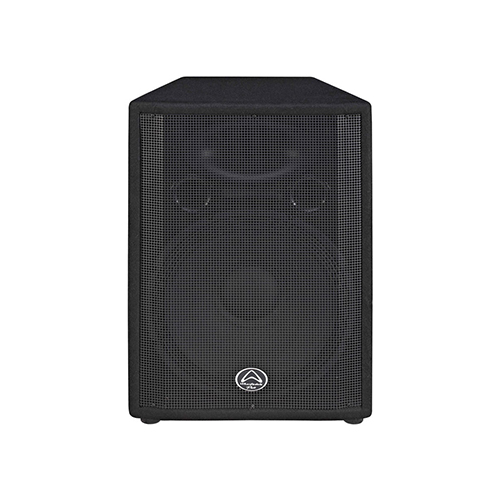

KINETIC 15

The Kinetic 15 is a passive 2-way loudspeaker that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 15 offers professional features such as a 1” compression driver, 15” custom designed woofer and PTC HF protection. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.

The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.

SPECIFICATIONS

MODEL KINETIC 15
Power Handling
Continuous 250W
Peak 1000W
Programme 500W
Nominal Impedance 4Ω or 8Ω
Max SPL (Calculated) 127dB
LF Size 305mm / 12"
LF Voice Coil 2"
HF Voice Coil 25.4mm / 1"
HF Waveguide Type Elliptical
HF Waveguide Exit 30.5mm / 1.2"
HF Diaphragm Material Phenolic
HF Protection PTC
Enclosure Finish Black Carpet
Grille Material & Finish 1.2mm Steel
Pole Mount 35mm / 1 3/8"
Handles 2 On Sides
Input Connector Type 2x Speakon + 0.25" Jack
HPF Output Connector Type
Net Weight 17.02 Kg/ 37.4 lbs
Gross Weight 18.8 Kg/ 41.4 lbs
Dimensions (Unpacked)
H 618mm / 24.3"
W FRONT/REAR 437.4/273.5mm / 17.2"/10.77"
D 330mm / 12.99 "
Dimensions (Packed)
H 680mm / 26.77"
W FRONT/REAR 502/304mm / 19.76"/11.97"
D 370mm / 14.57"
Configuration 2-way
Frequency Response (±3dB) 50-20KHz
Sensitivity (1W @ 1m) 97dB
Nominal Horizontal Coverage (@1kHz) 90°
Nominal Vertical Coverage (@1kHz) 60
LF Driver Number L01-07010131A
HF Driver number ZD-53200-01R
Enclosure Material and Thickness 12mm / 0.5" particle
Volume 0.1m3
