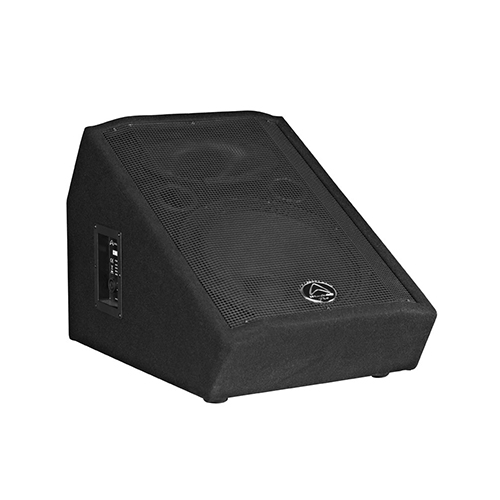

KINETIC 12M

The Kinetic 12M is a passive 2-way stage monitor that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 12M offers professional features such as a 1” compression driver, 12” custom designed woofer and PTC HF protection. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.

The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.

SPECIFICATIONS

MODEL KINETIC 12M
Power Handling
Continuous 200W
Peak 800W
Programme 400W
Nominal Impedance 4Ω or 8Ω
Max SPL (Calculated) 125dB
LF Size 305mm / 12"
LF Voice Coil 2.0"
HF Voice Coil 25.4mm / 1"
HF Waveguide Type Elliptical
HF Waveguide Exit 30.5mm / 1.2"
HF Diaphragm Material Phenolic
HF Protection PTC
Enclosure Finish Black Carpet
Grille Material & Finish 1.2mm Steel
Handles 1 On Sides
Input Connector Type 2x Speakon + 0.25" Jack
HPF Output Connector Type
Net Weight 11.5 Kg/ 25.3 lbs
Gross Weight 13.7 Kg/ 30.1 lbs
Dimensions (Unpacked)
H 380(SITU)mm / 14.96"
W FRONT/REAR 366 / 14.4"
D 525mm / 20.7"
Dimensions (Packed)
H 413mm / 16.26"
W FRONT/REAR 568mm / 22.36"
D 386mm / 15.2"
Configuration 2-way monitor
Frequency Response (±3dB) 60-20kHz
Sensitivity (1W @ 1m) 96dB
Nominal Horizontal Coverage (@1kHz) 90°
Nominal Vertical Coverage (@1kHz) 60
LF Driver Number L01-07010130A
HF Driver number ZD-53200-01R
Enclosure Material and Thickness 12mm / 0.5" particle
Volume 0.09m3
