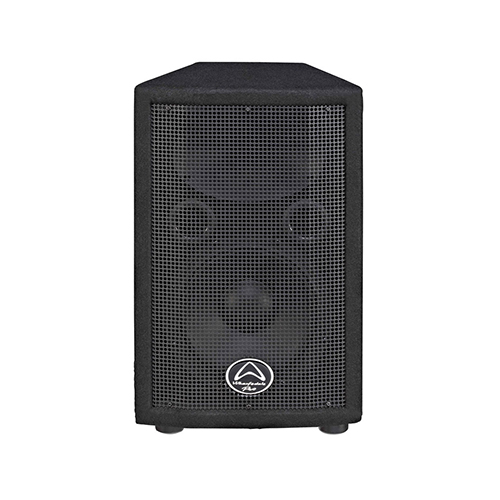

KINETIC 8

The Kinetic 8 is a passive 2-way loudspeaker that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 8 offers professional features such as a 1” compression driver, 8” custom designed woofer and PTC HF protection. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.

The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.

SPECIFICATIONS

MODEL KINETIC 8
Power Handling
Continuous 150W
Peak 600W
Programme 300W
Nominal Impedance 4Ω
Max SPL (Calculated) 124dB
LF Size 205mm / 8"
LF Voice Coil 1.53"
HF Voice Coil 25.4mm / 1"
HF Waveguide Type Elliptical
HF Waveguide Exit 30.5mm / 1.2"
HF Diaphragm Material Phenolic
HF Protection PTC
Enclosure Finish Black Carpet
Grille Material & Finish 1.0mm Steel
Pole Mount 35mm / 1 3/8"
Handles 2 On Sides
Input Connector Type 2x Speakon + 0.25" Jack
HPF Output Connector Type
Net Weight 7.84 Kg/ 17.3 lbs
Gross Weight 8.8 Kg/ 19.4 lbs
Dimensions (Unpacked)
H 429mm / 16.9"
W FRONT/REAR 272.2/149.6mm / 10.7"/5.9"
D 253mm / 9.96"
Dimensions (Packed)
H 482mm / 18.97"
W FRONT/REAR 299 /166mm / 11.8"/6.54"
D 278mm / 10.9"
Configuration 2-way
Frequency Response (±3dB) 70-20kHz
Sensitivity (1W @ 1m) 96dB
Nominal Horizontal Coverage (@1kHz) 90°
Nominal Vertical Coverage (@1kHz) 60
LF Driver Number L01-07010129A
HF Driver number ZD-53200-01R
Enclosure Material and Thickness 12mm / 0.5" particle
Volume 0.031m3
