EVP-X18B
![]() |
EVP-X SERIES
The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.
High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.
The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.
High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

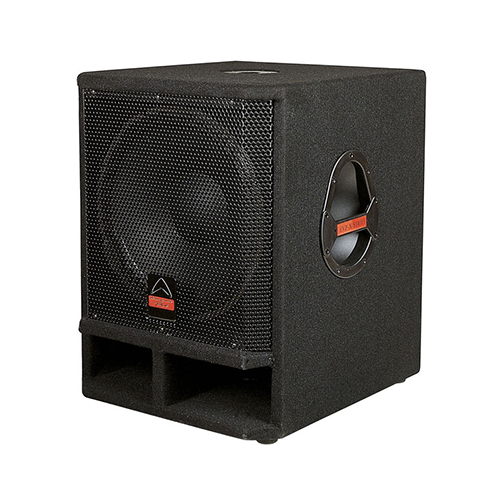

EVP-X18B
18" compact subwoofer
38 -250Hz frequency response (+/-3dB)
4 ohms system impedance
High pass output for mid/high frequency satellite speakers
2 x 1/4" jacks and 2 Speakon™ type connector
Rectangular enclosure
Continuous 600W / Music 1200W / Peak 2400W power handling
H/D/W: 610 x 610 x 552 mm, 47.4kg
SPECIFICATIONS
18" compact subwoofer
38 -250Hz frequency response (+/-3dB)
4 ohms system impedance
High pass output for mid/high frequency satellite speakers
2 x 1/4" jacks and 2 Speakon™ type connector
Rectangular enclosure
Continuous 600W / Music 1200W / Peak 2400W power handling
H/D/W: 610 x 610 x 552 mm, 47.4kg
SPECIFICATIONS
MODEL | EVP-X18B |
GENERAL INFO | |
System type | 18" passive subwoofer |
Frequency response +/- 3db | 38 -250Hz |
Sensitivity (db 1w@1m) | 100dB |
System impedance | 4 ohms |
Maximum SPL Peak dB | 134dB |
POWER HANDLING (Watts) | |
Continuous RMS | 600 |
Program | 1200 |
Peak | 2400 |
LF DRIVER | |
Lf driver size mm / inches | 1x18" |
Lf voice coil size | 102.62 /4.0" |
CROSSOVER SECTION | Subwoofer |
Crossover Frequency / Filter | 150Hz |
PHYSICAL FEATURES | |
Finish | Black carpet |
Stand adapter - TOP | Yes |
Enclosure type | Vented |
Enclosure shape | Rectangular |
IN / OUT PANEL (speaker Level) | |
Input connector | 2 x 1/4" jacks and 2 x Speakon™ |
High pass out | 1 x 1/4" jacks and 1 x Speakon™ |
DIMENSIONS & WEIGHT | |
Height ( mm / ins ) | 610 |
Width Front / Rear / mm / ins | 522 |
Depth ( mm / ins ) | 610 |
Net weight ( kg / lbs ) | 47.4kg |
Gross weight ( kg / lbs ) | 50.7kg |
