EVP-X15B

EVP-X SERIES

The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.

High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

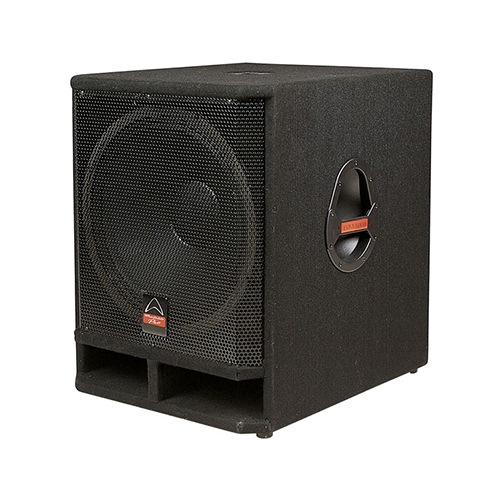

EVP-X15B
15" compact subwoofer
45 -250Hz frequency response (+/-3dB)
4 ohms system impedance
High pass output for mid/high frequency satellite speakers
2 x 1/4" jacks and 2 x Speakon™ type connector
Rectangular enclosure
Continuous 400W / Music 800W / Peak 1600W power handling

H/D/W: 591 x 510 x 460 mm, 33.5kg

SPECIFICATIONS

MODEL EVP-X15B
GENERAL INFO
System type 15" passive subwoofer
Frequency response +/- 3db 45 -250Hz
Sensitivity (db 1w@1m) 99dB
System impedance 4 ohms
Maximum SPL Peak dB 131dB
POWER HANDLING (Watts)
Continuous RMS 400
Program 800
Peak 1600
LF DRIVER
Lf driver size mm / inches 1x15"
Lf voice coil size 77.06 / 3.0"
CROSSOVER SECTION Subwoofer
Crossover Frequency / Filter 150Hz
PHYSICAL FEATURES
Finish Black carpet
Stand adapter - TOP Yes
Enclosure type Vented
Enclosure shape Rectangular
IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and 2 x Speakon™
High pass out 1 x 1/4" jacks and 1 x Speakon™ @ 100Hz
DIMENSIONS & WEIGHT
Height ( mm / ins ) 591
Width Front / Rear / mm / ins 460
Depth ( mm / ins ) 510
Net weight ( kg / lbs ) 33.5kg
Gross weight ( kg / lbs ) 36.5kg
