EVP-X215

EVP-X SERIES

The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.

High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

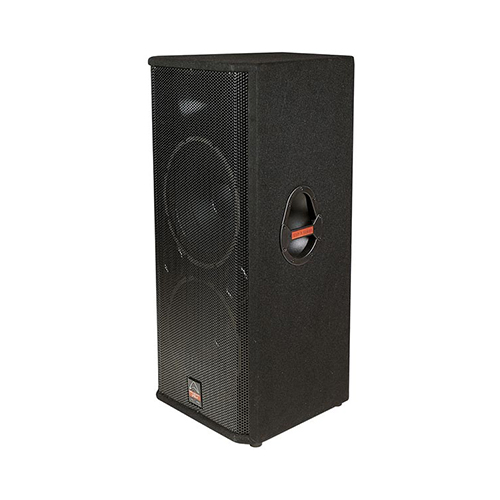

EVP-X215
Quasi 3-way full range
40 -20kHz frequency response (+/-3dB)
4 ohms system impedance
Trapezoidal enclosure
2 x 1/4" jacks and 2 x Speakon™ type connector
Continuous 500W / Music 1000W / Peak 2000W power handling

H/D/W: 1058 x 467 x 502 mm, 43.2kg

SPECIFICATIONS

MODEL EVP-X215
GENERAL INFO
System type Quasi 3-way 2x 15" 2-way passive
Frequency response +/- 3db 40 -20kHz
Sensitivity (db 1w@1m) 100dB
System impedance 4 ohms
Maximum SPL Peak dB 133dB
POWER HANDLING (Watts)
Continuous RMS 500
Program 1000
Peak 2000
LF DRIVER
Lf driver size mm / inches 2x15"
Lf voice coil size 64.26 /2.5"
HF SECTION
Hf voice coil size 44/1.75"
Hf diaphragm material Titanium
Horn dispersion (H x V) 90 x 60
Hf exit size mm / inches 25 /1"
Hf horn shape Elliptical
CROSSOVER SECTION 2-way full range
Crossover Frequency / Filter 2.2kHz
Hf driver protection Bulb
Hf EQ (Boost / Flat) 3dB
PHYSICAL FEATURES
Finish Black carpet
Enclosure type Vented
Enclosure shape Trapezoid
IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and 2 x Speakon™
DIMENSIONS & WEIGHT
Height ( mm / ins ) 1058
Width Front / Rear / mm / ins 502
Depth ( mm / ins ) 467
Net weight ( kg / lbs ) 43.2kg
Gross weight ( kg / lbs ) 48kg
