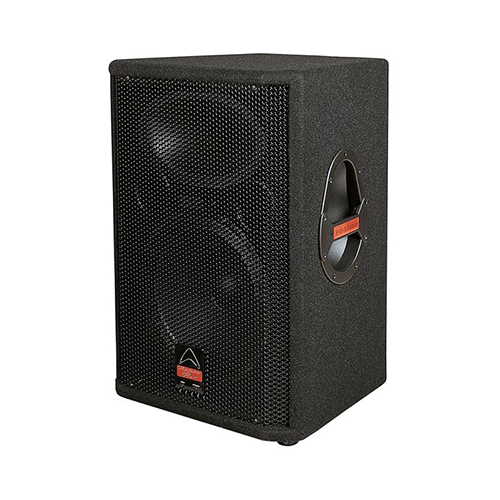

EVP-X15

EVP-X SERIES

The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.

High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

EVP-X15
15" Two-way full range
45 -20kHz frequency response (+/-3dB)
8 ohms system impedance
Trapezoidal enclosure
2 x 1/4" jacks and 2 x Speakon™ type connector
Continuous 300W /Music 600W / Peak 1200W power handling

H/D/W: 675 x 460 x 450 mm, 25.95kg

SPECIFICATIONS

MODEL EVP-X15
GENERAL INFO
System type 15" 2-way passive
Frequency response +/- 3db 45 -20kHz
Sensitivity (db 1w@1m) 98dB
System impedance 8 ohms
Maximum SPL Peak dB 129dB
POWER HANDLING (Watts)
Continuous RMS 300
Program 600
Peak 1200
LF DRIVER
Lf driver size mm / inches 1x15"
Lf voice coil size 64.26 /2.5"
HF SECTION
Hf voice coil size 44/1.75"
Hf type 25 /1"
Hf diaphragm material Titanium
Horn dispersion (H x V) 90 x 60
Hf horn shape Elliptical
CROSSOVER SECTION 2-way full range
Crossover Frequency / Filter 2.2kHz
Hf driver protection Bulb
Hf EQ (Boost / Flat) 3dB
PHYSICAL FEATURES
Finish Black carpet
Stand adapter - BOTTOM Yes
Enclosure type Vented
Enclosure shape Trapezoid
IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and 2 x Speakon™
DIMENSIONS & WEIGHT
Height ( mm / ins ) 675
Width Front / Rear / mm / ins 460/294.5
Depth ( mm / ins ) 450
Net weight ( kg / lbs ) 25.95kg
Gross weight ( kg / lbs ) 28kg
