EVP-X12M

EVP-X SERIES

The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.

High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

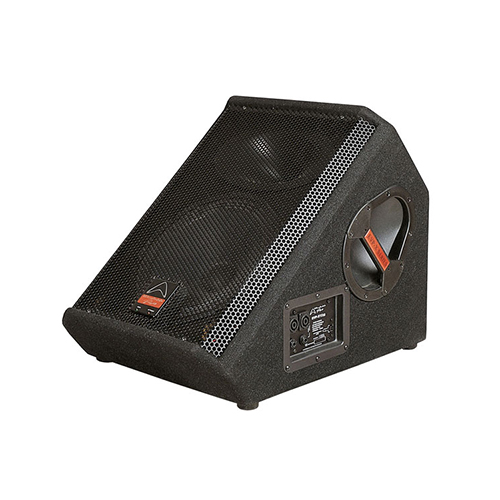

EVP-X12M
12" Two-way monitor
60-20kHz frequency response (+/-3dB)
8 ohms system impedance
2 x 1/4" jacks and 2 x Speakon™ type connector
Continuous 250W / Music 500W / Peak 1000W power handling

H/D/W: 560 x 441 x 424 mm, 18.5kg

SPECIFICATIONS

MODEL EVP-X12M
GENERAL INFO
System type 12" 2-way passive monitor
Frequency response +/- 3db 60 -20kHz
Sensitivity (db 1w@1m) 98dB
System impedance 8 ohms
Maximum SPL Peak dB 128dB
POWER HANDLING (Watts)
Continuous RMS 250
Program 500
Peak 1000
LF DRIVER
Lf driver size mm / inches 1x12"
Lf voice coil size 51.6 /2"
HF SECTION
Hf voice coil size 44/1.75"
Hf diaphragm material Titanium
Horn dispersion (H x V) 90 x 60
Hf exit size mm / inches 25 /1"
Hf horn shape Elliptical
CROSSOVER SECTION 2-way full range
Crossover Frequency / Filter 2.4kHz
Hf driver protection Bulb
Hf EQ (Boost / Flat) 3dB
PHYSICAL FEATURES
Finish Black carpet
Stand adapter - BOTTOM No
Enclosure type Vented
Enclosure shape Monitor
IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and 2 x Speakon™
DIMENSIONS & WEIGHT
Height ( mm / ins ) 560
Width Front / Rear / mm / ins 424
Depth ( mm / ins ) 441
Net weight ( kg / lbs ) 18.5kg
Gross weight ( kg / lbs ) 21.1kg
