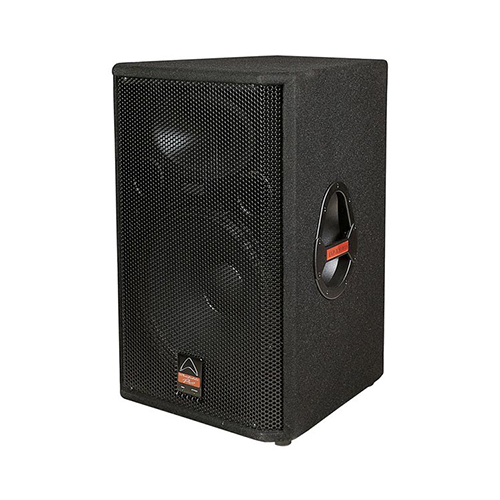

EVP-X12

The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class. High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

SPECIFICATIONS

MODEL EVP-X12
GENERAL INFO
System type 12" 2-way passive
Frequency response +/- 3db 55 -20kHz
Sensitivity (db 1w@1m) 98dB
System impedance 8 ohms
Maximum SPL Peak dB 128dB
POWER HANDLING (Watts)
Continuous RMS 250
Program 500
Peak 1000
LF DRIVER
Lf driver size mm / inches 1x12"
Lf voice coil size 51.6 /2"
HF SECTION
Hf voice coil size 44/1.75"
Hf diaphragm material Titanium
Horn dispersion (H x V) 90 x 60
Hf exit size mm / inches 25 /1"
Hf horn shape Elliptical
CROSSOVER SECTION 2-way full range
Crossover Frequency / Filter 2.2kHz
Hf driver protection Bulb
Hf EQ (Boost / Flat) 3dB
PHYSICAL FEATURES
Finish Black carpet
Stand adapter - BOTTOM Yes
Enclosure type Vented
Enclosure shape Trapezoid
IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and 2 x Speakon™
DIMENSIONS & WEIGHT
Height ( mm / ins ) 590
Width Front / Rear / mm / ins 430/297.5
Depth ( mm / ins ) 370
Net weight ( kg / lbs ) 19.3kg
Gross weight ( kg / lbs ) 22kg
