Carvin's SCx 1000 Series Loudspeakers feature the latest innovations for both live and recorded music playback, incorporating "smart crossovers" and drivers that deliver a "very musical" sound quality at high levels, up to 134 dB peak, plus your investment is protected with our high frequency driver Speaker Guard™ circuitry. Rugged construction features CNC machined, multi-ply Baltic Birch enclosures covered in weather and UV resistant Duratec™ coating. NL4 twist-loc & 1/4-inch input connectors are featured for full-range or bi-amp use, plus radiused steel powder coated grills, pole mounts, large side handles and recessed pockets for stacking, all covered with a 5 Year Warranty. These high performance systems are designed for today's Music Industry pro audio applications.

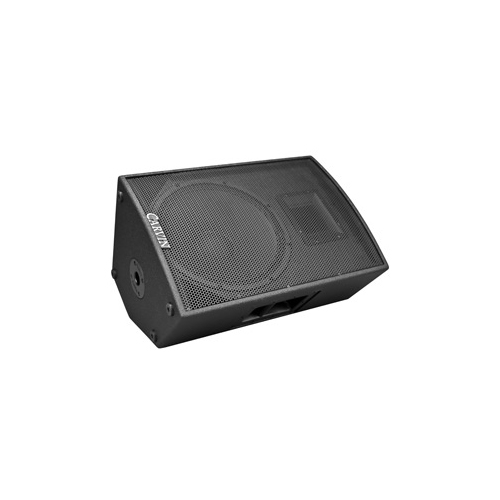

The SCx1115 is a multi-purpose loudspeaker for front of house mains, stage monitors, and DJ sound. Loaded with a 15-inch heavy-duty woofer in a trap enclosure, this modern design features a curved front protected with Duratec™ as with all SCx systems. In full-range mode it will handle 1600 watts peak delivering an impressive SPL level that is pleasing to the ear along with extended bass from a small enclosure. The pole mount adds flexibility allowing the SCx1115 to be used with a stand or subwoofer.

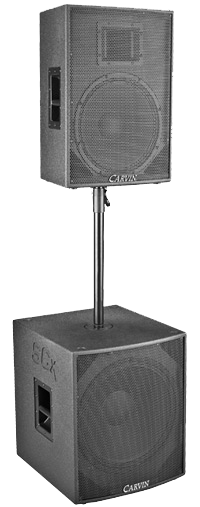

For more low-end thump, all SCx systems can be supplemented with the SCx1118 passive or SCx1118A active subs. The heavy-duty 18-inch woofer, housed in a bass reflex enclosure, delivers sub-bass down to 35 Hz adding real depth and feel to your performances. The 8 ohm, 3-inch voice-coil is designed to handle up to 2000 watts peak. The active model features an internal 1400 watts power amp. Ideal for multi-stacking or stacking mains on top, this compact, high output subwoofer is a real work-horse that you can depend on, night after night.

Carvin's SCx speakers are made in the USA.


  • System Type: 15-inch 2-Way, bass-reflex
  • Frequency Response: 54 Hz – 20 kHz (-10DB); 62 Hz – 18 kHz (-3 dB)
  • Coverage Pattern: 90H x 60V
  • Crossover: 2-Way with Speaker Guard™ HF protection
  • Crossover Frequency: 1.8 k Hz (internal)
  • Recommended external crossover frequency: 1.8k Hz @ 12dB/oct. or greater
  • Power Full Range: 400w Continuous / 800w Program / 1600w Peak
  • Recommended Amplifier Power: 400 – 1000w
  • Sensitivity (1w @ 1m): 98dB
  • Maximum SPL: 124dB Cont. / 130dB Peak
  • LF Driver: 15-inch Heavy Duty 2.5-inch VC
  • HF Driver: 1-inch exit Mylar 1.75-inch VC
  • Nominal Impedance full range: 8 ohms
  • Bi-amp LF: 8 ohms 400w /800w /1600w
  • Bi-amp HF: 8 ohms 60w /120w /240w
  • Enclosure: 13-Ply Premium Russian Baltic Birch
  • Suspension/Mounting: 1-3/8-inch pole mount cup
  • Finish: Black DuraTex™
  • Transport: 2 Recessed Handles
  • Grill: Black powder coated steel
  • Connectors: Two 4-pin twist lock connectors, Two 1/4-inch connectors
  • Dimensions: 25 in high x 18 in wide x 13 in deep (685 mm x 485 mm x 395 mm)
  • Net Weight: 45 lb (21 kg)
  • Made in San Diego, California
